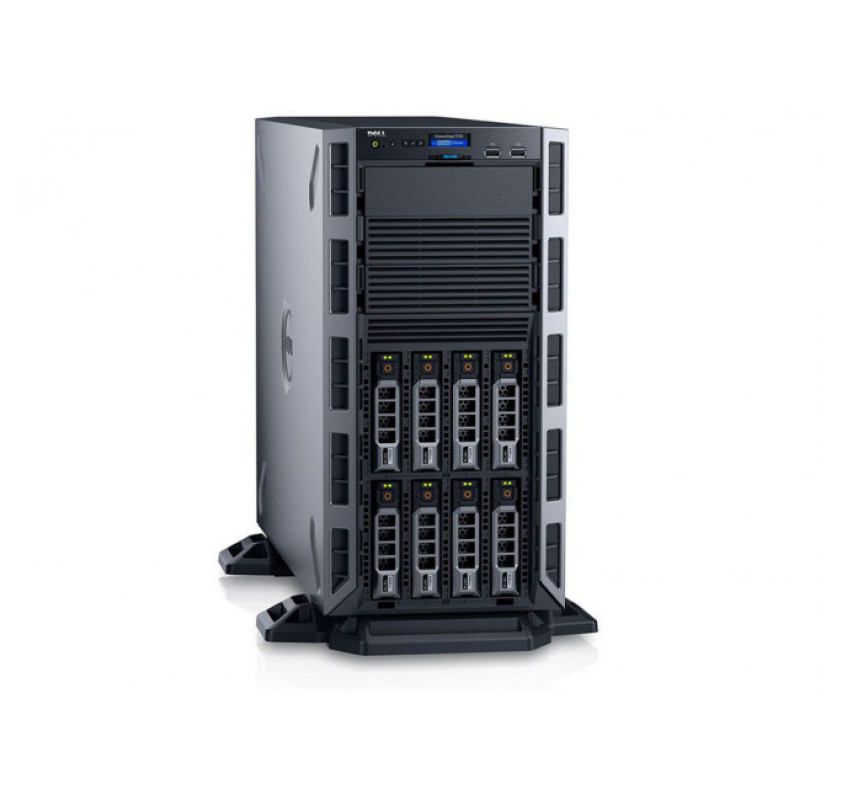

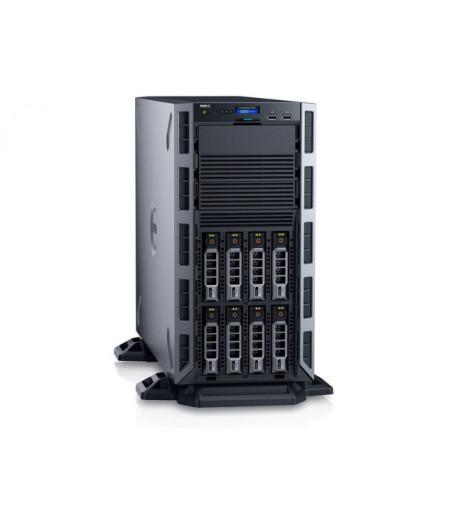

Form factor

Rackable tower server (5U when racked)

Processor

1 processor from the following product families:

• Intel® Xeon® processor E3-1200 v5 product family
• Intel Pentium®
• Intel CoreTM i3

Chipset

Intel C236

Operating system

Microsoft® Windows Server® 2012 Microsoft Windows Server 2012 R2, x64 Red Hat® Enterprise Linux®

VMware® Vsphere® 2015

Memory

Architecture: Up to 2133MT/s DDR4 DIMMs Memory type: UDIMMs

Memory module sockets: 4 Maximum RAM: Up to 64GB

Hypervisor support

Microsoft Windows Server (with Hyper-V ® enabled) Citrix® XenServer®

VMware® vSphere® ESXi®

Storage

• 2.5” SATA 7.2K
• 2.5” nearline SAS 7.2K
• 2.5” SAS 10K HDs

Drive bays

• 8 x 3.5” bays (also supports 2.5” HDD in 3.5” hybrid drive carrier)

Slots

1x8 PCIe 3.0 (x16 connector) 1x4 PCIe 3.0 (x8 connector)

RAID controllers

PERC S130, PERC H330, PERC H730, PERC H830

Network controller

Broadcom® 5720

Communications

Intel.quad-ort and dual-port 1Gb server adapters Broadcom quad-port 1Gb Base-T adapter Broadcom dual-port 1Gb Base-T adapter Broadcom 57810 dual-port 10GbE

Intel XL710 DP 10Gb DA/SFP+ server adapter

Power

1 x 350W cabled PSU or up to 2 x 495W redundant PSUs

Chassis

5U rackable tower

Management

Systems management: IPMI 2.0 compliant

• Dell OpenManage Essentials
• Dell OpenManage Mobile
• Dell OpenManage Power Center

Dell OpenManage Integrations:

• Dell OpenManage Integration Suite for Microsoft System Center
• Dell OpenManage Integration for VMware vCenter®

Device Access

8 total USB:

• Rear USBs: 2 x USB 3.0 + 4 x USB 2.0
• Front USBs: 1 x USB 2.0 + 1 x USB 3.0

Rack Support

ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.

Dimensions

Height: chassis base height - 430.3 mm/17.04”

• With foot - 443.3 mm/17.45 in
• With wheel - 471.3 mm/18.55 in

Width: chassis base width - 218 mm/8.58 in

• With foot - 304.5 mm/11.98 in
