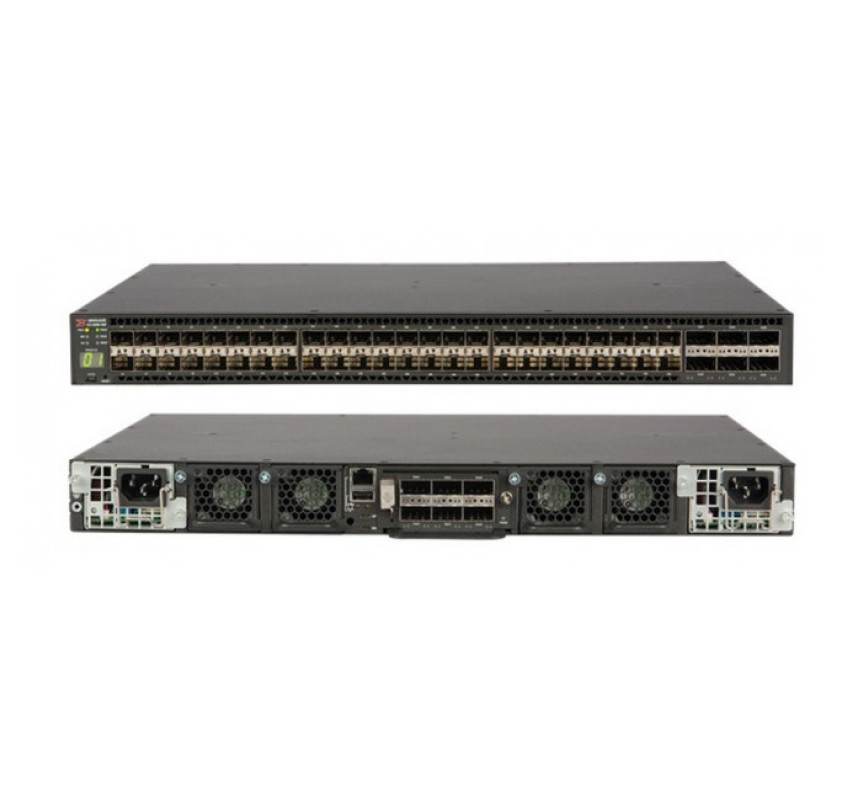

Коммутатор Brocade ICX 7750 доступен в трех модификациях: Brocade ICX 7750-48F, 7750-48C, и 7750-26Q. Модели Brocade ICX 7750-48F и 7750-48C оснащены 48 портами 10 GbE (с поддержкой SFP либо 10GBASE-T в зависимости от модели) и 12 портами 40 GbE. Модель Brocade ICX 7750-26Q оснащена 32 портами 40 GbE с поддержкой трансиверов QSFP+.
Характеристики коммутатора BrocadeRuckusICXICX7750 (ICX7750-48F-RMT3):
| Fixed ports: 1/10 Gbps SFP/SFP+ | 48 |
| Fixed ports: 100 Mbps, 1/10 Gbps, 10GBASE-T RJ45 |
|
| Fixed ports: 40 Gbps QSFP+ | 6 |
| Modular slots | 1 |
| Modular ports: 40 Gbps QSFP+ (max.) | 6 |
| Latency | 550 ns |
| Dynamic packet buffer size | 12.2 MB |
| Base IPv4/IPv6 Layer 3 routing | |
| Advanced IPv4/IPv6 Layer 3 routing | With Certificate of Entitlement |
| Aggregated stacking bandwidth | 5.76 Tbps |
| Stacking density | 12 |
| Maximum stacking distance | 10 km |
| Power inlet (AC) | C14 |
| Input voltage/frequency | AC: 100 to 240 VAC @ 50 to 60 Hz |
| Maximum power draw | 586 W |
| Power supply rated maximum (AC) | 2×500 W |
| Power supply rated maximum (DC) | 2×500 W |
| Switch power utilization2 (25°C) Typical Maximum | 250 W 327 W |
