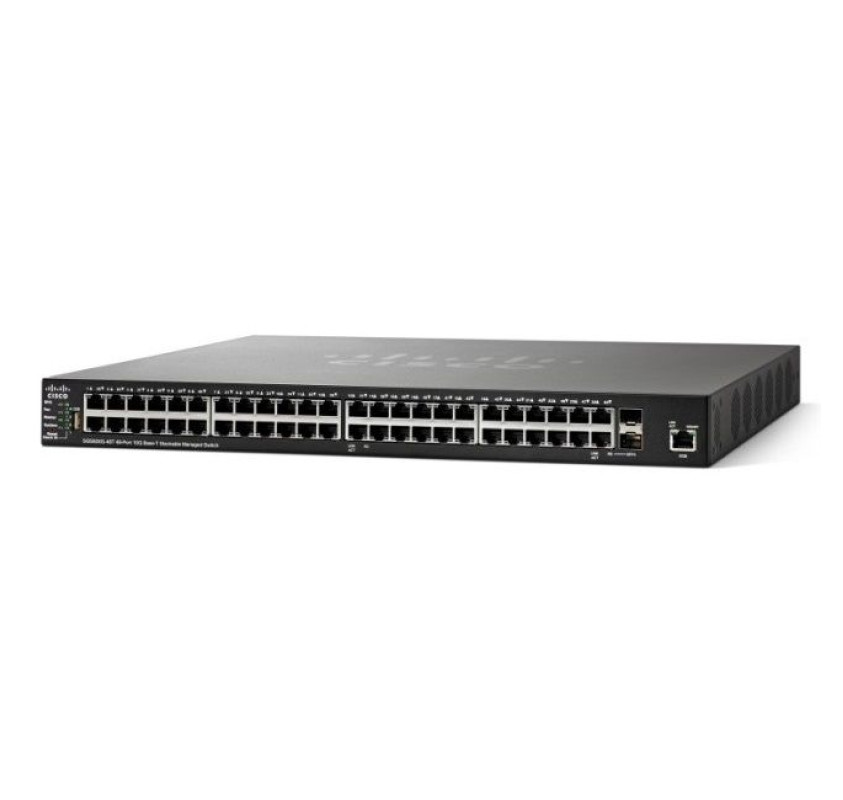

SG550XG-48T

Capacity in mpps (64-byte packets)

714.24

Switching Capacity (Gbps)

960

Power Dedicated to PoE

-

Number of Ports That Support PoE

-

Green Power (mode)

EEE, Energy Detect, Short Reach

System Power Consumption

110V=264.4W 220V=255.8W

Power Consumption (with PoE)

N/A

Heat Dissipation (BTU/hr)

902.17

Total System Ports

46 10G copper + 2 combo 10G copper/SFP+ plus 1 GE OOB management

Network Ports

46 10GE

Uplink Ports

2 10GE copper/SFP+ combo

Flash

256 MB

CPU

800 MHz (dual-core) ARM

CPU memory

512 MB

Packet Buffer

4 MB

Unit Dimensions

440 x 44 x 450 mm (17.3 x 1.7 x 17.72 in)

Unit Weight

7.43 kg (16.38 lb)

Fan (Number)

4 + 1 (redundant)

Acoustic Noise

0°C - 25°C: 44.5dB 50°C: 58.9dB

MTBF at 50°C (Hours)

111,323
