Specifications

Radios

· 2.4 GHz 802.11b/g/n/ax client access radio

· 5 GHz 802.11a/n/ac/ax client access radio

· 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio

· 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support

· Concurrent operation of all four radios

· Supported frequency bands (country-specific restrictions apply)

· Supported frequency bands (country-specific restrictions apply):

o 2.412-2.484 GHz

o 5.150-5.250 GHz (UNII-1)

o 5.250-5.350 GHZ (UNII-2)

o 5.470-5.600, 5.660-5.725 GHz (UNII-2e)

o 5.725 -5.825 GHz (UNII-3)

Antenna

· Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)

802.11ax, 802.11ac Wave 2 and 802.11n Capabilities

· DL-OFDMA**, UL-OFDMA**, TWT support**, BSS Coloring**

· 8 x 8 multiple input, multiple output (MIMO) with eight spatial streams on 5GHz

· 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 2.4GHz

· SU-MIMO, UL MU-MIMO** and DL MU-MIMO support

· Maximal ratio combining (MRC) & beamforming

· 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax)

· Up to 1024-QAM on both 2.4 GHz & 5 GHz bands

· Packet aggregation

Power

· Power over Ethernet: 42.5 - 57 V (802.at compliant)

· Alternative: 12 V DC input

· Power consumption: 22W max (802.3at)

· Power over Ethernet injector and DC adapter sold separately

Interfaces

· 1x 100/1000/2.5G/5G BASE-T Ethernet (RJ45)

· 1x DC power connector (5.5 mm x 2.5 mm, center positive)

Mounting

· All standard mounting hardware included

· Desktop, ceiling, and wall mount capable

· Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes

· Bubble level on mounting cradle for accurate horizontal wall mounting

Physical Security

· Two security screw options (included) (3.5 mm long and 2.5 mm diameter and 5 mm head)

· Kensington lock hard point

· Concealed mount plate with anti-tamper cable bay

Environment

· Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)

· Humidity: 5 to 95% non-condensing

Physical Dimensions

· 12.83” x 5.54” x 1.76” (32.6 cm x 14.079 cm x 4.47 cm), not including deskmount feet or mount plate

· Weight: 1 kg

Security

· Integrated Layer 7 firewall with mobile device policy management

· Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal

· Flexible guest access with device isolation

· VLAN tagging (802.1q) and tunneling with IPsec VPN

· PCI compliance reporting

· WEP***, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)**

· EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM

· TKIP and AES encryption

· Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration

· Cisco ISE integration for Guest access and BYOD Posturing

Quality of Service

· Advanced Power Save (U-APSD)

· WMM Access Categories with DSCP and 802.1p support

· Layer 7 application traffic identification and shaping

Mobility

· PMK, OKC, & 802.11r for fast Layer 2 roaming

· Distributed or centralized layer 3 roaming

Analytics

· Embedded location analytics reporting and device tracking

· Global L7 traffic analytics reporting per network, per device, & per application

LED Indicators

· 1 power/booting/firmware upgrade status

Regulatory

· RoHS

· For additional country-specific regulatory information, please contact Meraki sales

Warranty

· Lifetime hardware warranty with advanced replacement included

Ordering Information

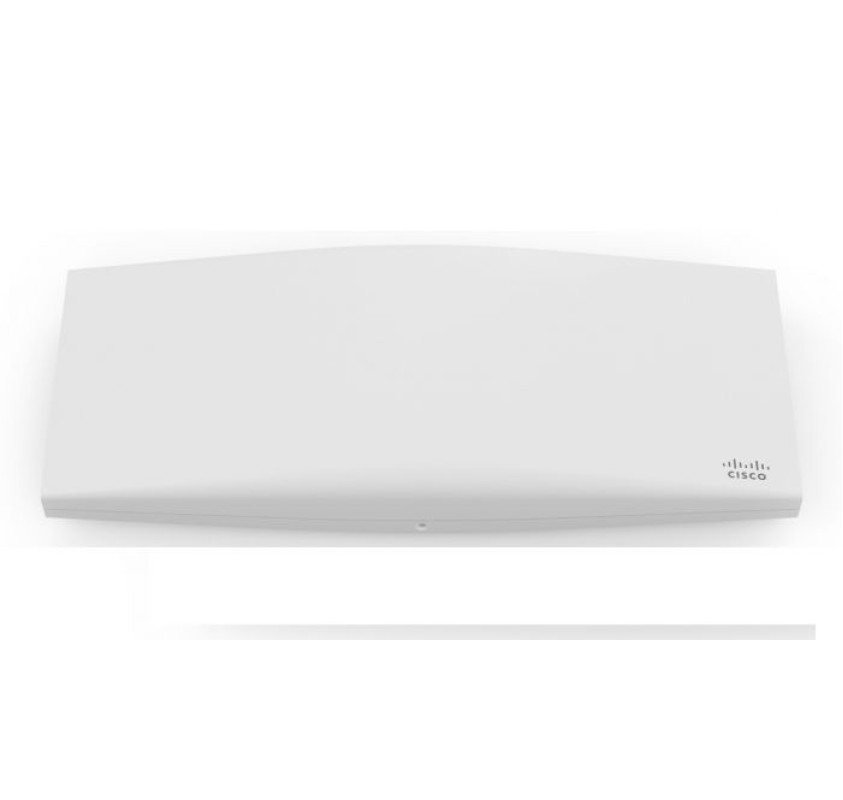

· MR56-HW: Meraki MR56 Cloud Managed 802.11ax AP

· MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU)

· MA-INJ-4-XX: Meraki Gigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)

· MA-INJ-5-XX: Meraki Multigigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)

· Note: Meraki access point license required.
