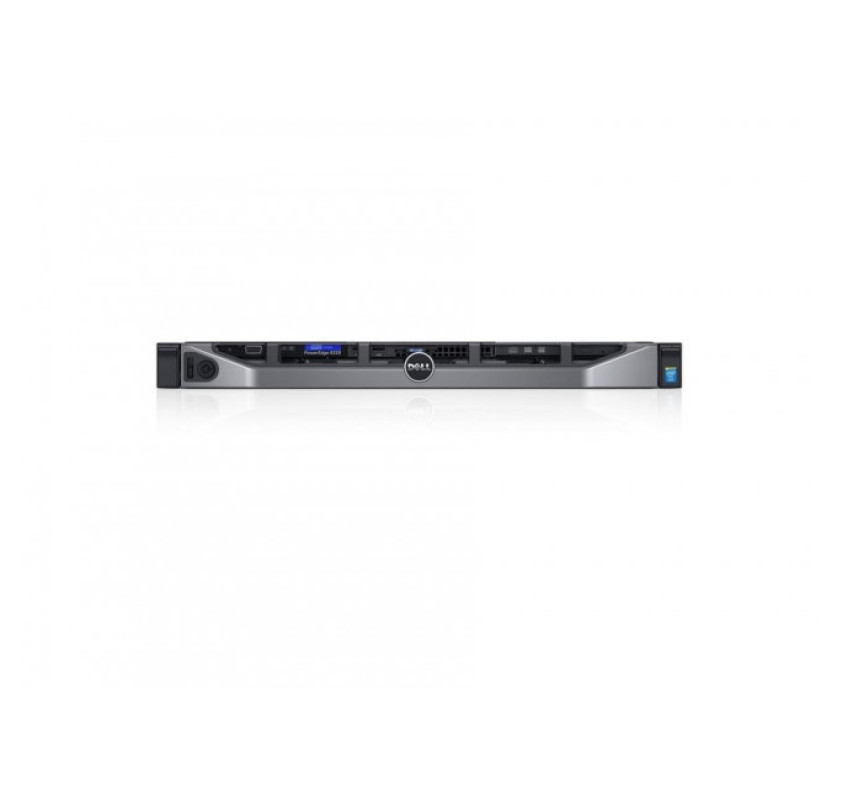

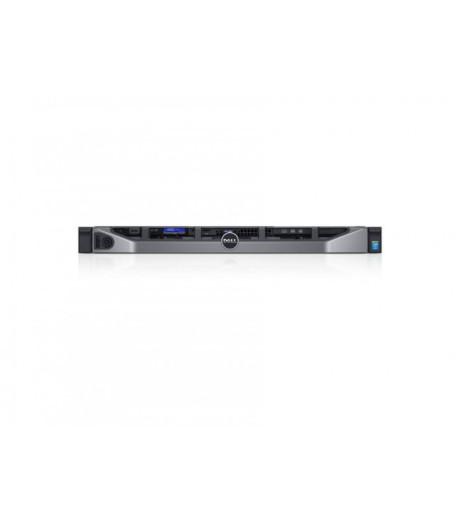

Form factor

1U rack server

Processor

1 processor from the following product families:

• Intel® Xeon® processor E3-1200 v5 product family
• Intel Pentium®
• Intel CoreTM i3

Chipset

Intel C236

Operating system

Microsoft® Windows Server® 2012 Microsoft Windows Server 2012 R2, x64 Red Hat® Enterprise Linux®

VMware® vSphere® ESXi®

SUSE® Linux Enterprise Server 11 SP4 SUSE Linux Enterprise Server 12 SP1

Memory

Architecture: Up to 2133MT/s DDR4 DIMMs Memory type: UDIMMs

Memory module sockets: 4 Maximum RAM: Up to 64GB

Hypervisor support

Microsoft Windows Server with Hyper-V® Citrix® XenServer®

VMware® vSphere® ESXi®

Red Hat Enterprise Virtualization

Storage

• 1.8” SSD
• 2.5” SSD SATA
• 2.5” SATA 7.2K
• 2.5” SAS 15K HDs
• 2.5” nearline SAS 72K
• 2.5” SAS 10K HDs
• 3.5” Enterprise SATA 7.2K HDDs
• 3.5” nearline SAS 7.2K HDDs

Drive bays

• Up to 4 x 3.5” cabled HDD plus optional 2 x 1.8” SSD cabled
• Up to 4 x 3.5” hot-swap HDD
• Up to 8 x 2.5” hot-swap HDD
• UP to 4 x 2.5” hot-swap HDD (available via hybrid drive carrier)

Slots

2 x PCIe 3.0 slots + 1 slot for internal storage

RAID controllers

Internal controllers: PERC S130, PERC H330, PERC H730 (internal slot ), PERC H830

Network controller

2 x 1GbE

Communications

Add-in network interface cards (NICs) and host bus adapters (HBAs) NICs:

• Broadcom® dual and quad-port 1Gb Base-T adapters
• Intel dual and quad-port 1Gb Base-T adapters
• Qlogic® Quark dual-port 10Gb SFP+ and Base-T adapter

Fibre Channel HBAs

• Qlogic 8Gb
• Emulex® 8Gb

Power

Up to 2 x 350W hot-plug redundant power supplies

Management

Systems management: IPMI 2.0 compliant

• Dell OpenManage Essentials
• Dell OpenManage Mobile
• Dell OpenManage Power Center

Dell OpenManage Integrations:

• Dell OpenManage Integration Suite for Microsoft System Center
• Dell OpenManage Integration for VMware vCenter®

Dell OpenManage Connections:

• HP Operations Manager, IBM Tivoli® Netcool® and CA Networ k and Systems Management
• Dell OpenManage Plug-in for Oracle® Database Manager

Remote management:

iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade),

• 8GB vFlash media (upgrade),16GB vFlash media (upgrade)

Device Access

5 total USBs: 2 front; 2 rear; 1 internal

Rack Support

ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
